2xxx Series 2014 Aluminum Alloy Sheet For Aerospace Industry
2014 alloy is primarily used in aerospace/military applications where high strength is critical.
For commercial uses, modified 2XXX/7XXX alloys are often preferred due to better corrosion
resistance.
Key Properties
Chemical Composition
Al-Cu-Mg-Si series alloy containing:
Cu (3.9-5.0%)
Mg (0.2-0.8%)
Si (0.5-1.2%)
Mechanical Properties
Tensile strength:
T6 temper: ≥480 MPa
T4 temper: ≥425 MPa
Elongation: 8-10% (T6)
Hardness: Up to 135 HB (T6)
Corrosion Resistance: Poor - requires surface protection
Heat Treatment: Responds well to T4/T6 tempers
Common Tempers
Temper Process Characteristics
T4 Solution heat treated + naturally aged High strength + good ductility
T6 Solution heat treated + artificially aged Maximum strength/hardness
O Annealed Soft state for forming
Main Advantages
✔ High strength-to-weight ratio
✔ Excellent machinability
✔ Good heat resistance (150-250°C service)
✔ Suitable for precision machining
Typical Thicknesses
Aerospace: 1.5-50 mm
Machinery: 5-30 mm
Transportation: 2-20 mm
Tooling: 10-100 mm
Primary Applications
♦ Aircraft structural components
♦ Military armor/defense systems
♦ High-stress mechanical parts
♦ Racing vehicle components
Limitations
⚠ Poor weldability (requires special techniques)
⚠ Low corrosion resistance (needs coating)
⚠ Fast work hardening (may require annealing)
our company advantages
Technological & Production Strengths:
R&D Capabilities: Own a national-level corporate technology center and contributes to industry
standards.
Production Scale: We had an annual capacity exceeding 1 million tons of aluminium large-scale
rolling mills.
Production Ability: We can produce the great Aluminum material for automobile, railway transportation,
marine, aerospace etc fields, and obtained the relevant certification.

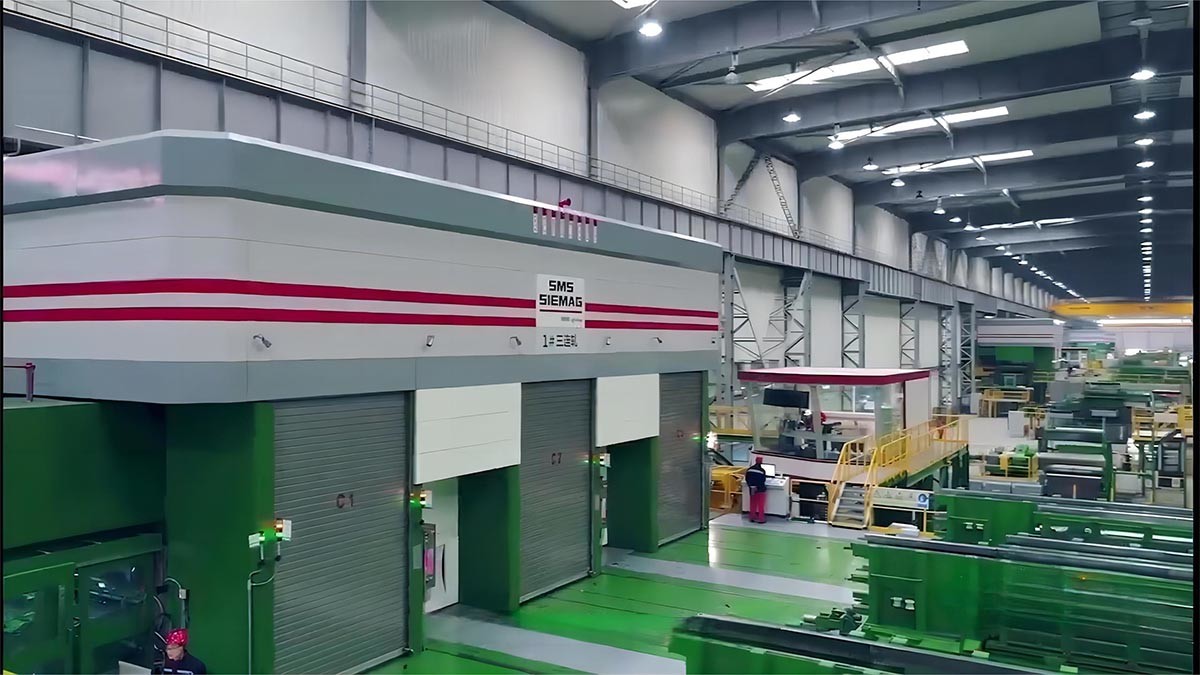

Our factory own the world advanced equipments, include:
| Code | Name | Brand |
| a | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| b | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| c | 4 continuous hot rolling mills | SMS Group (Germany) |
| d | heavy crop and dividing shear | SMS Group (Germany) |
| e | coil material annealing furnace | SMS Group (Germany) |
| f | all automatic three-dimensional elevated warehouse | Dematic (USA) |
|
|
2xxx Series 2014 Aluminum Alloy Sheet For Aerospace Industry Images
|
